Reverse Osmosis Self Piercing Saddle Valve Clamp - Water Filter Men

    Reverse Osmosis Self Piercing Saddle Valve Clamp

    £13.00 £15.00
    Tax included. Shipping calculated at checkout.

    USAGE:

    Can be used on all copper cold water pipe to get water feed connection to any water filter. Connect the cold water feed under sink /other to 1/4" ldpe pipe.  Used to connect to multiple different water filters including reverse osmosis systems.  It can connect to under sink drinking water filters and fridge filters with 1/4" ldpe pipe.



    DESCRIPTION:

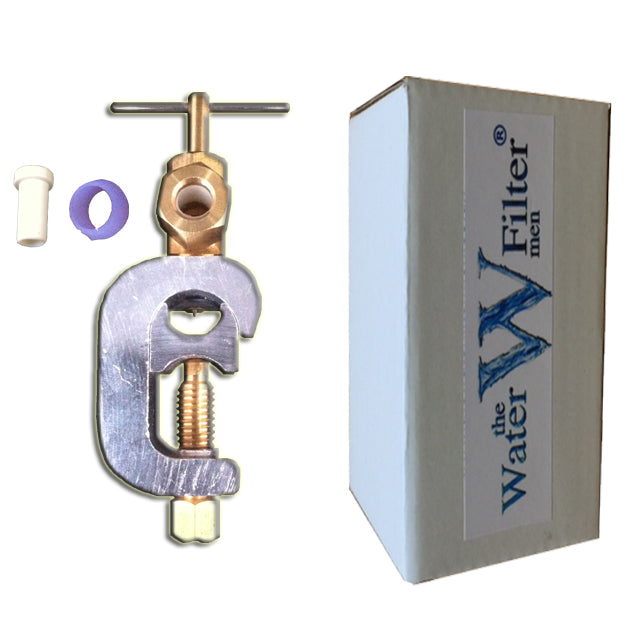

    Self Piercing Needle Clamp Saddle Valve




    SPECIFICATION

    Will fit 9mm to 15mm copper comes with all parts like 1/4" pipe insert and Olive ready for immediate install.



    SELF PIERCING SADDLE VALVE INSTRUCTIONS

    1. CLAMP THE SADDLE VALVE TO YOUR COLD WATER SUPPLY PIPE (15mm/9mm) .

    2. PLACE ¼” NUT ON TUBING , PLACE PIPE INSERT INTO TUBING , THEN PLACE ¼” OLIVE ON TUBING(CAN BE TIGHT).

    3. FIRMLY PUSH ¼” PIPING INTO HOLE ON SADDLE VALVE

    4. TIGHTEN NUT OVER TO COMPRESS FITTING.

    5. TURN SELF PIERCING VALVE LEVER CLOCKWISE TO PIERCE HOLE THEN TURN ANTI-CLOCKWISE TO ALLOW THE WATER TO FLOW.
